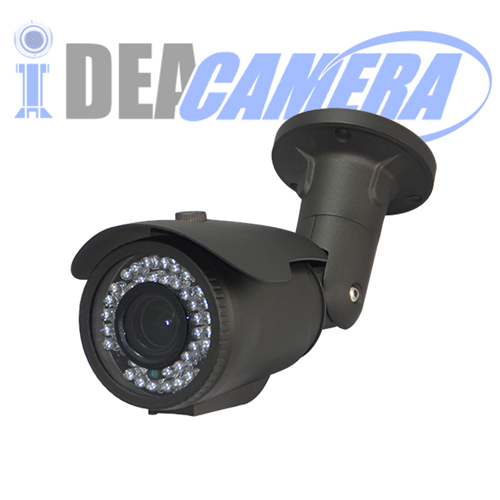

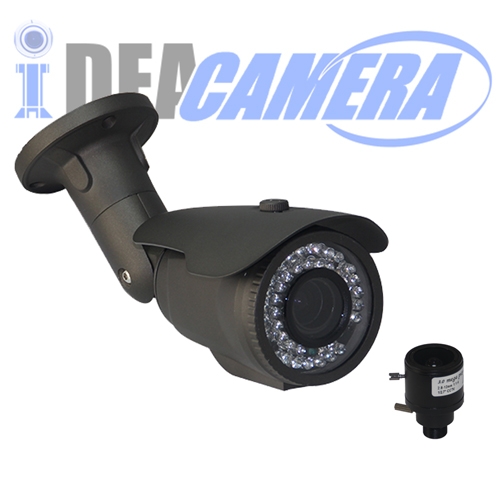

4MP Waterproof Bullet IR AHD Camera with 4MP 2.8-12mm Varifocal Lens, Low illumination, UTC Control, AHD/CVI/TVI/CVBS 4-in-1

2019-12-16 14:31:05, Visits:
Product Model: RC-BM75MA-4K
FOB Price: US$20.82-US$22.82
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS
PDF:

Inquire Now >

Model: RC-BM75MA-4K

Main Features:

Dark gray casing with strong bracket.

42pcs 5 IR LEDs(40M IR Distance).

Metal+ glass strong lens.

4MP HD 2.8-12mm Varifocal Lens.

BNC Interface Video Cable (OSD optional).



Key specifications:

Image sensor: 4MP 1/3.2 CMOS SOI K02+FH8538M DSP.

Video output: AHD/CVI/TVI/CVBS 4-in-1.

Effective pixels: 2592(H) x1520(V).

Electronic shutter: 1/50(1/60) seconds to 1/100,000 seconds.

Video frame rate: 2592*1520 at 25fps, 2592*1520 at 30fps.

Synchronization: internal.

Photosensitive Resistance: 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage.

Minimum illumination: color0. 01Lux@F1.2AGC ON),0Lux with IR.

Black & White0.001Lux@F1.2AGC ON),0Lux with IR

S/N ratio: >58dB.

Video output: 1Vp-p, 75Ω, BNC.

Day and night: automatic (ICR).

Backlight compensation: automatic.

Gain control: automatic.

White balance: automatic.

IR-cut: supported.

Lightning protection: supported.

Night vision: supported.

Waterproof casing: IP66.



Production Advantages:

Offer 2-years product warranties.

Logistics convenient.

OEM/ODM.

CCC/CE/FCC Certified.

Strict product quality control.

Work with almost HD Hybrid DVRs.

Lower price.

6-8 working day per order.



Production applications:

This is the best product of safety field. It and hard disk video recorderscablepower supplydisplayetc. Constitute a complete security system. Tts application is more extensive. Such as homesfactorieshighwaysoffice buildinggardencommunity, or a large public places, etc.


Descriptions

4MP HD Analog Video Camera Module

Sensor

4MP 1/3.2 CMOS SOI K02+FH8538M   DSP

Video Resolution

PAL/NTSC: 2592(H)*1520(V)

Minimum Illumination

color0. 01Lux@F1.2AGC ON),0Lux with IR

Black & White0.001Lux@F1.2AGC ON),0Lux with IR

Photosensitive Resistance

1 photosensitive resistance   interface, support the photosensitive resistor input signal   and image, IR-CUT, infrared lamp linkage

Shutter

1/50(1/60) seconds   to 1/100,000 seconds

Day and Night Function

Support IR-CUT

Lens Parameters

C/CS interface, M12 lens optional

Synchronous Mode

inter-sync

Noise-signal Ratio

>58dB

Lightning   protection

supported

Temperature and Humidity

- 10 ~ 60 , humidity is less than 90% (no condensation)

Power

DC12V±10%

Consumption

<5W

Size

Standard 32*38 positioning hole
