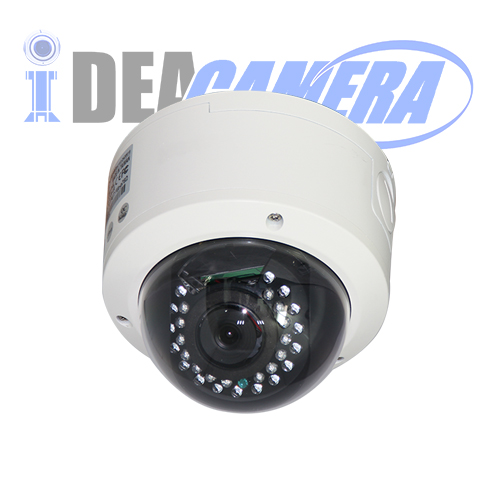

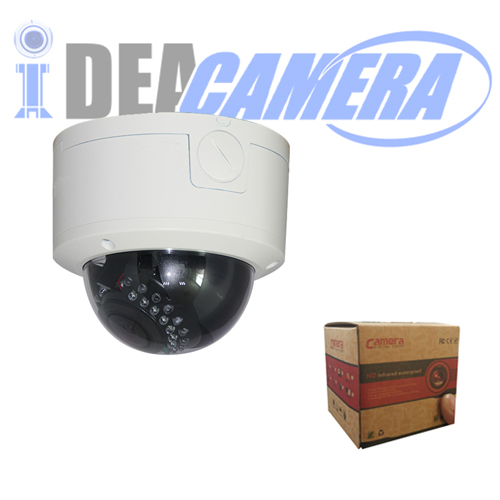

4K IP Dome Camera,VSS Mobile App,Audio in,POE Power Supply,Support Face Detection,P2P

2020/3/10 14:05:38, Visits:
Product Model: RC-DVF90D-8MPV-PA
FOB Price: US$86.11-US$86.11
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS

Inquire Now >

Model: RC-DVF90D-8MPV-PA

Key features:

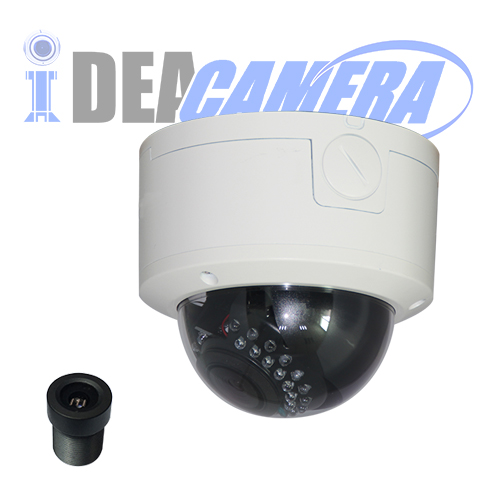

8MP 3.6mm Fixed Lens (6,8mm optional).

White all metal body.

Built-in 30pcs IR LEDs.

Support 25 meters IR distance.

Audio in with POE Power Supply.


Main parameters:

32-bit DSP (1/2.5"SONY IMX274+Novatrek 96683 Sensor).

3840*2160@25/30fps (4k) High resolution.

Support Face Detection by VSS System.

Mobile App: (VSS Mobile), Computer client (IMS300)

ONVIF2.6, H.265/H.264 high profile.

Support Tri-Stream technology.

Support one channel audio input; one channel audio output; support two-way voice speaking.

Support one channel alarm input, one channel alarm output.

Support one TF card interface, the maximum up to128G.

Support one electric zoom interface.

Support one 485 interface.

Support one USB interface.

Support one CVBS output.

Support SMART IR.

Support 3D DNR, DWDR.

Support P2P and cross-browser access.


Product Advantages:

Offer 2-years product warranties.

Logistics convenient.


CCC/CE/FCC Certified.

Strict product quality control.

Efficiently working with almost NVR.

Lower price.

6-8 working day per order.


Product applications:

This is the best product of safety field. It and hard disk video recorderscablepower supplydisplayetc. Constitute a complete security system. Tts application is more extensive. Such as homesfactorieshighwaysoffice buildinggardencommunity, or a large public places, etc.

8MP   Economical Double-Boards IP Camera Module

Product   model


System   Structure


Embedded RTOS, DSP (Novatrek 96683)


1/2.5" CMOS sensor (SONY IMX274)

Video   Encoding

Video Encoding

H.265 Main Profile

H.264HighProfile/ Main Profile/ Baseline   Profile

Maximum Image Output

Main stream3840*2160@25/30fps;

Auxiliary stream one and two can optional

Sub stream


Video Bite rate


Image   Enhancement

Min. illumination

Color0.1Lux@F1.2AGC ON);

black and white0.01Lux@F1.2AGC ON

Electronic shutter

Auto1/25 to 1/10000

Day/Night switch

Auto/color/B&WBuilt-in   IR_CUT


2D and 3D DNR


Support digital wide dynamic and REAL wide   dynamic

Video Adjust

Sharpness, Brightness, Saturation, Contrast   Adjustable


Signal interface

one photosensitive resistance signal interface,

one IR_CUT drive interface, one network signal   interface,

support photo resistance signal links to IR-CUT   and IR light

Smart IR

One port

Reset interface

One port

Audio interface

One audio inOne audio out

Alarm interface

One alarm in; One alarm out

485 interface

One port

TF card interface

One port

Power interface

One DC12V power input

CVBS Interface

One Port

USB interface

One Port

POE interface

One Extended Interface

Network lamp interface

One Port

Network interface

One RJ45 10/100M Port

electric zoom interface

One Port


Motion detection

Multiple detection zones, variable sensitivity   levels

Capture function

JPEGcapture resolution is the max coding resolution


Password protection and water marker


Support Channel Name and Time

Smart function

Perimeter Intrusion Detection

Smart alarm

Network abnormal, cover alarm etc.

Mobile client

VSSMOBILE for both iPhone and Android system   phone

Protocol support


Interface protocol



Power Supply


Power Consumption

7W (without infrared lamp board)

Lightning Protection

Power, network, POE all lightning protection,

meets with standard GB/T17626.5and   IEC61000-4-5

IR pitch



38*38mmDouble Board
